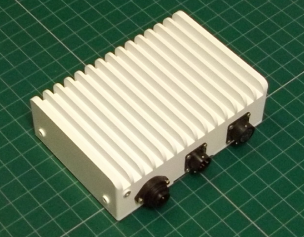

MODEL No. NJZ1289 250W Outdoor AC/DC Power Supply Unit
< Features >
* Outdoor AC/DC Power Supply
? Active Power Factor Correction (PFC) Equipped
? Input AC Voltage: 100 to 240 V
? Output DC Voltage: 48 V typ.
? Output DC Power: 250 W max.
* Compact Size & Light Weight
? Dimension: 186 (L) x 133 (W) x 60 (H) mm
? Weight: 1.6 kg
< Specifications >
|
Item |
Specifications |
|
Input AC Voltage Range |
100 to 240 V (Rating: 90 to 264 V) |
|
Input AC Power |
300 VA max. |
|
Output DC Voltage |
+48 V typ. |
|
Output DC Power Capacity |
250 W max. |
|
Efficiency |
90 % |
|
Power Factor |
0.9 |
|
Temperature Range (ambient) |
|
|
Operating: |
-40 to +55 C |
|
Storage: |
-40 to +75 C |
|
Dimension & Housing |
186 (L) x 133 (W) x 60 (H) mm [7.32” (L) x 5.24” (W) x 2.36” (H)] |
|
|
without interface connector and screws |
|
Weight |
1.6 kg max. [3.5 lbs max.] |
